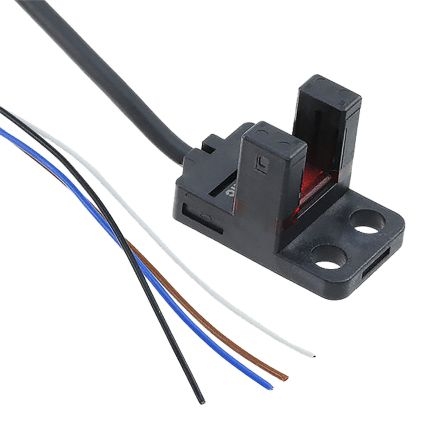

Cảm biến quang điện PM-F24P Panasonic
Giá gốc: 190.000₫
Giá khuyến mại 180.000₫
| Item | Specifications |
|---|---|
| Product Number | PM-F24P |
| Part Number | PM-F24P |
| Sensing range | 5 mm 0.197 in (fixed) |
| Minimum sensing object | 0.8 x 1.8 mm 0.031 x 0.071 in opaque object |
| Hysteresis | 0.05 mm 0.002 in or less |
| Repeatability | 0.03 mm 0.001 in or less |
| Supply voltage | 5 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Current consumption | 15 mA or less |
| Output | PNP open-collector transistor Maximum source current: 50 mA Applied voltage: 30 V DC or less (between output and + V) Residual voltage: 0.7 V or less (at 50 mA source current), 0.4 V or less (at 16 mA source current) |
| Output:Output operation | Incorporated with 2 outputs: Light-ON / Dark-ON |
| Response time | Under light received condition: 20 micros or less Under light interrupted condition: 100 micros or less (Response frequency: 1 kHz or more) |
| Operation indicator | Vermilion LED (lights up under light received condition) |
| Ambient temperature | -25 to +55 degrees -13 to +131degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +80 degrees -22 to +176degrees Fahrenheit (Note) Used at an ambient temperature of +50 degrees +122degrees Fahrenheit, or more, make sure to mount it on a metal body. |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Fluorescent light: 1,000 lx at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 50 MOhm, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 2,000 Hz frequency, 1.5 mm 0.059 in amplitude in X, Y and Z directions for two hours each |
| Shock resistance | 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions for three times each |
| Emitting element | Infrared LED (Peak emission wavelength: 940 nm 0.037 mil, non-modulated) |
| Material | Enclosure: PBT, Slit cover: Polycarbonate |
| Cable | 0.09 mm2 4-core cabtyre cable, 1 m 3.281 ft long |
| Wiring length | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| Weight | Net weight: 10 g approx. |
