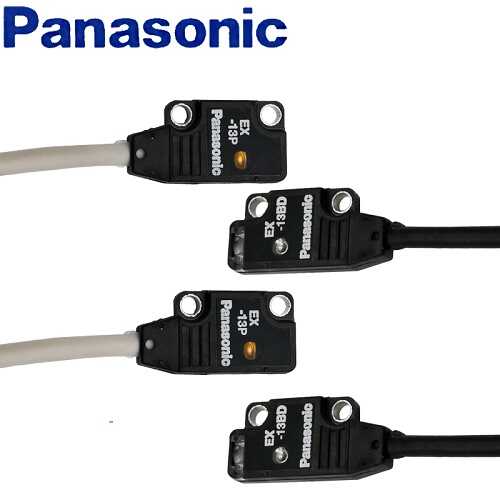

Cảm biến quang điện Panasonic EX-11EA
Giá gốc: 850.000₫
Giá khuyến mại 800.000₫
Specifications
| Type | Thru-beam | ||||||
|---|---|---|---|---|---|---|---|
| Front sensing |
Side sensing |
Front sensing |
Side sensing |
Front sensing |
Side sensing |
||
| Model No. (Note 2) |
Light-ON | EX-11A (-PN) |
EX-11EA (-PN) |
EX-13A (-PN) |
EX-13EA (-PN) |
EX-19A (-PN) |
EX-19EA (-PN) |
| Dark-ON | EX-11B (-PN) |
EX-11EB (-PN) |
EX-13B (-PN) |
EX-13EB (-PN) |
EX-19B (-PN) |
EX-19EB (-PN) |
|
| Regulatory compliance | ・EMC Directive ： EN 60947-5-2 ・RoHS Directive ・ISO 13849-1 (Category 1, PLc) (Note 3) |
||||||
| Certification | UL certification (Note 4), Korea’s S-mark certification (Note 5) | ||||||
| Sensing range | 150 mm 5.906 in | 500 mm 19.685 in | 1 m 3.281 ft | ||||
| Min. sensing object | ø1 mm ø0.039 in opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 150 mm 5.906 in) |
ø2 mm ø0.079 in opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 500 mm 19.685 in) |
ø2 mm ø0.079 in opaque object (Completely beam interrupted object) (Setting distance between emitter and receiver: 1 m 3.281 ft) |
||||
| Hysteresis | - | ||||||
| Repeatability (perpendicular to sensing axis) |
0.05 mm 0.002 in or less | ||||||
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less | ||||||
| Current consumption | Emitter: 10 mA or less, Receiver: 10 mA or less | ||||||
| Output | <NPN output type> NPN open-collector transistor ・Maximum sink current: 50 mA ・Applied voltage: 30 V DC or less (between output and 0 V) ・Residual voltage: 2 V or less (at 50 mA sink current) 1 V or less (at 16 mA sink current) <PNP output type> PNP open-collector transistor ・Maximum source current: 50 mA ・Applied voltage: 30 V DC or less (between output and +V) ・Residual voltage: 2 V or less (at 50 mA source current) 1 V or less (at 16 mA source current) |
||||||
| Utilization category | DC-12 or DC-13 | ||||||
| Short-circuit protection | Incorporated | ||||||
| Response time | 0.5 ms or less | ||||||
| Operation indicator | Orange LED (lights up when the output is ON) | ||||||
| Incident beam indicator | - | ||||||
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
||||||
| Pollution degree | 3 (Industrial environment) | ||||||
| Protection | IP67 (IEC) | ||||||
| Ambient temperature | -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ |
||||||
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH | ||||||
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face | ||||||
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure | ||||||
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure | ||||||
| Vibration resistance | 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude in X, Y and Z directions for two hours each | ||||||
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each | ||||||
| Emitting element | Red LED [Peak emission wavelength: 680 nm 0.027 mil (EX-19E□: 624 nm 0.025 mil), modulated] | ||||||
| Material | Enclosure: Polyethylene terephthalate Lens: Polyalylate |
||||||
| Cable (Note 6) | 0.1 mm2 3-core (thru-beam type emitter: 2-core) cabtyre cable, 2 m 6.562 ft long |
||||||
| Cable extension | Extension up to total 50 m 164 ft is possible with 0.3 mm2, or more, cable (thru-beam type: emitter and receiver). (Note 7) | ||||||
| Weight | Net weight (each emitter and receiver): 20 g approx., Gross weight: 50 g approx. |
||||||
| Accessories | Mounting screws: 1 set | ||||||
Notes:
| 1) | Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 ℃ +73.4 ℉. |
|---|---|
| 2) | Model Nos. having the suffix "-PN" are PNP output type. |
| 3) | Conformed from December 2021 production. |
| 4) | Except 5 m 16.404 ft cable length type. (EX-19E□-C5 is included in the certified products.) |
| 5) | NPN output type standard cable only. |
| 6) | The bending-resistant cable type (model Nos. having suffix "-R") has a 0.1 mm2 3-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable, 2 m 6.562 ft long. |
| 7) | For safety applications, do not exceed 30 m 98.425 ft. |
