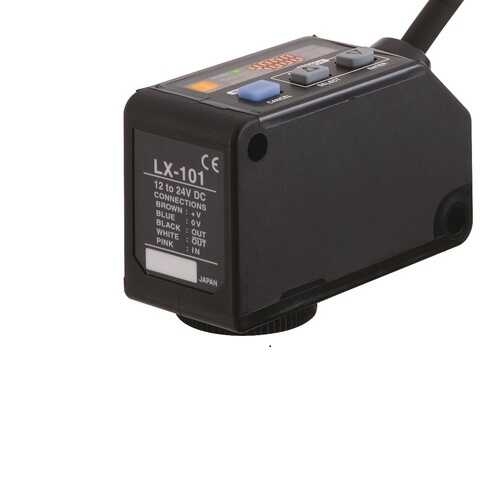

Cảm biến quang điện LX-101-P Panasonic

Giá gốc: 3.100.000₫

Giá khuyến mại 3.000.000₫

Spec Detail

Item Specifications
Product Number LX-101-P
Part Number LX-101-P
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 10 ± 3 mm 0.394 ± 0.118 in
Spot size 1 x 5 mm 0.039 x 0.197 in (at 10 mm 0.394 in setting distance)
Supply voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption Normal mode: 750 mW or less(Current consumption 30 mA or less at 24 V supply voltage)
ECO mode: 600 mW or less(Current consumption 25 mA or less at 24 V supply voltage)
Output 1(OUT) NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1.5 V or less (at 50 mA sink current)
Output 1:Short-circuit protection Incorporated
Output 1:Output operation Mark mode: Light-ON / Dark-ON (Auto-setting on teaching)
Color mode: Consistent-ON / Inconsistent-ON (Setting on teaching)
Output 2(OUT) NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1.5 V or less (at 50 mA sink current)
Output 2:Short-circuit protection Incorporated
Output 2:Output operation Inverted operation of the output 1
Response time Mark mode: 45 micro s or less
Color mode: 150 micro s or less
Teaching input NPN non-contact input
- Signal condition: High... +5 V to +V, or open, Low... 0 to +2 V (source current: 0.5 mA or less)
- Input impedance: 10 kOhm approx.
Digital display 4-digit red LED display
Sensitivity setting Mark mode: 2-level teaching / Full-auto teaching
Color mode: 1-level teaching
Fine sensitivity adjustment function Incorporated
Timer function Incorporated with variable ON-delay / OFF-delay timer,
switchable either effective or ineffective
(Timer period: 1 to 500 ms, 9 levels variable)
Protection IP67 (IEC)
Ambient temperature -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3.0 mm 0.118 in double amplitude (max. 20 G) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directionsthree times each
Emitting element Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm 0.025 mil / 525 nm 0.021 mil / 470 nm 0.019 mil)
Material Enclosure: PBT
Display cover: Polycarbonate
Operation buttons: Silicone rubber
Lens: Glass
Lens holder: Aluminum
Cable 0.34 mm2 5-core cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Weight Net weight: 120 g approx
Gross weight: 180 g approx
Accessory M4 (length 30 mm 1.181 in) screw with washers: 2 pcs.
