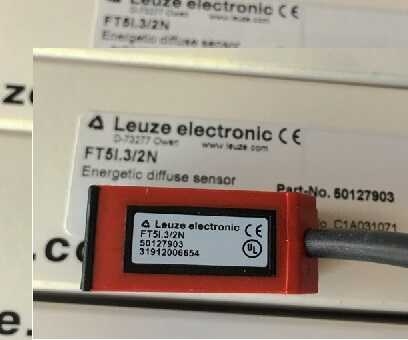

Basic data

• Series5
• Operating principleDiffuse reflection principle

Optical data

• Operating range, white 90%0.001 ... 0.7 m
• Operating range, gray 50%0.001 ... 0.59 m
• Operating range, gray 18%0.003 ... 0.39 m
• Operating range, black 6%0.005 ... 0.28 m
• Operating range limit, white 90%0 ... 1 m
• Operating range limit, gray 50%0.001 ... 0.85 m
• Operating range limit, gray 18%0.003 ... 0.55 m
• Operating range limit, black 6%0.002 ... 0.4 m
• Light sourceLED, Red

Electrical data

• Protective circuitPolarity reversal protection, Short circuit protected

• Performance data

  • Supply voltage U_B10 ... 30 V, DC, Incl. residual ripple
  • Residual ripple0 ... 15 %, From U_B
  • Open-circuit current0 ... 20 mA

• Outputs

  • Number of digital switching outputs2 Piece(s)

  • Switching output 1

    • Switching elementTransistor, NPN
    • Switching principleLight switching

  • Switching output 2

    • Switching elementTransistor, NPN
    • Switching principleDark switching

Timing

• Switching frequency500 Hz
• Response time1 ms

Connection

• Connection 1

  • FunctionVoltage supply, Signal OUT
  • Type of connectionCable
  • Cable length2,000 mm
  • Number of conductors4 -wire

Mechanical data

• Dimension (W x H x L)14 mm x 32.5 mm x 20.2 mm
• Housing materialPlastic, ABS
• Lens cover materialPlastic
• Net weight70 g

Operation and display

• Operational controlsTeach button

Environmental data

• Ambient temperature, operation-40 ... 60 °C

Certifications

• Degree of protectionIP 67
• Protection classIII
• Certificationsc UL US
• Standards appliedIEC 60947-5-2
