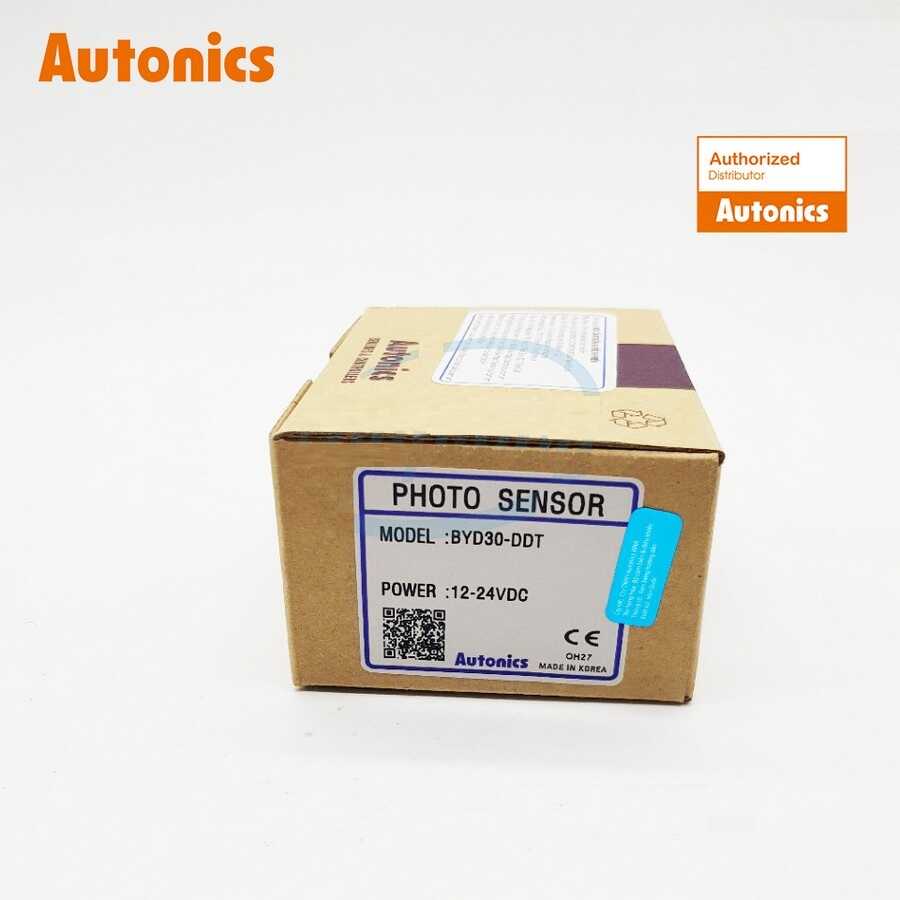

Cảm biến quang Autonics BYD30-DDT-T
Giá gốc: 500.000₫
Giá khuyến mại 450.000₫
| Sensing type | Diffuse reflective type |
|---|---|
| Sensing distance | 100mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED |
| Response time | Operation: Max. 3ms, Return: Max. 100ms |
| Power supply | 12-24VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 35mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON |
| Control output | NPN open collector |
| Connection type | Cable type(Ø3.5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP50 |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 25% at sensing distance |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Acrylic, Bracket: Steel Plate Cold Commercial, Bolt: Steel Chromium molybdenum, Nut: Steel Chromium molybdenum, Sleeve: Brass, Ni-plate |
| Accessories | Adjuster driver, Fixing bracket A, M3 Screws, Nuts |
| Weight | Approx. 75g(approx. 38g) |
