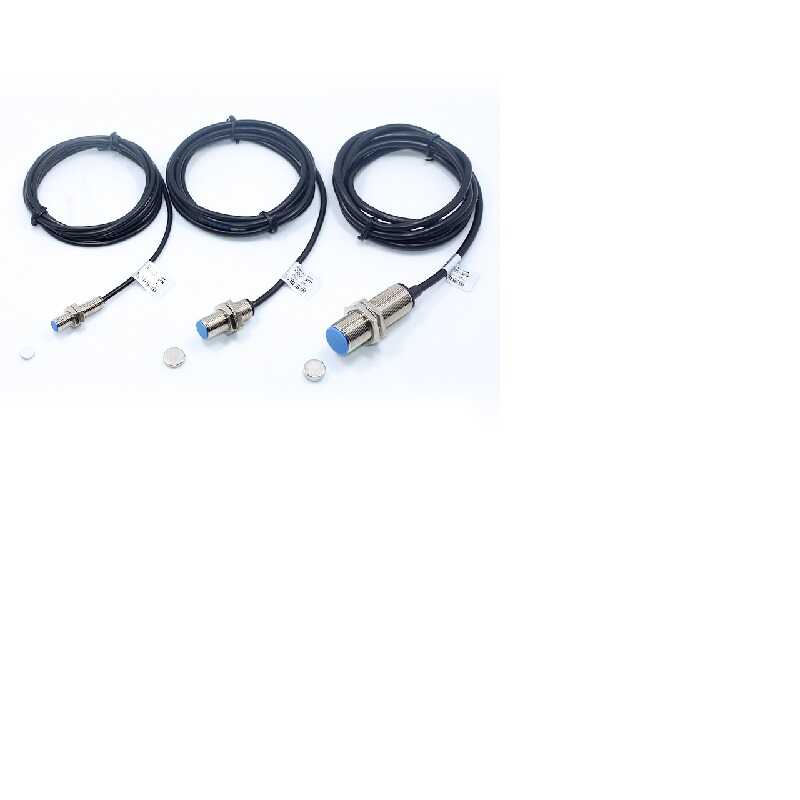

Cảm biến nam châm NJK-8001B
Giá gốc: 135.000₫
Giá khuyến mại 120.000₫
▇ Operating form and model number
Sensor type | Operating form | Contact form | Model number | Same model | Online store: |
Hall effect | NPN | NO | NJK-5001C | NJK-8001C | US $1.87/ pieceOrder |
▇ General
Model number | NJK-5001 series |
External dimensions | M8*1*39 |
Detection distance | 10mm |
Supply voltage-hall effect | 5-30VDC |
Continuous load current | 150mA |
Sensing object | Permanent magnet |
Response frequency | 100KHz |
Protection | Reverse polarity protection/Surge suppressor |
Dielectric strength | 1500Vac, 1min (between charging part and housing) |
Material | Case: Brass-nickel plated |
