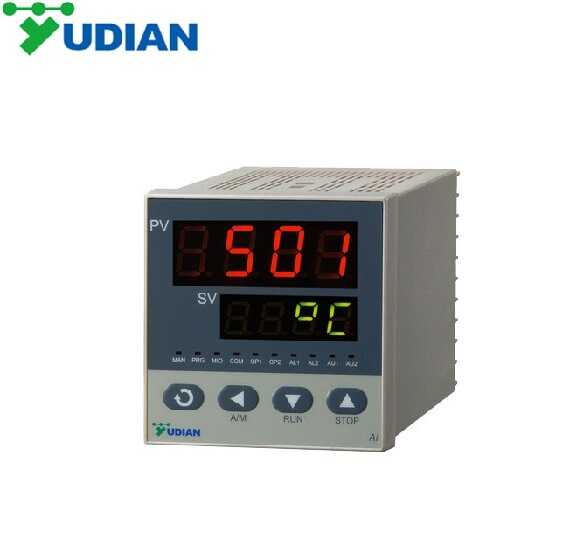

TECHNICAL SPECIFICATION

Input type: (Any of below specifications can be selected by parameter “Sn”) Thermocouple: K, S, R, T, E, J, N, WRe3-WRe25, WRe5-WRe26 Resistance temperature detector: Cu50, Pt100 Linear voltage: 0～5V, 1～5V, 0～1V, 0～100mV, 0～60mV, 0～20mV, etc.; 0～10V if module I31 is installed on MIO socket. Linear current (external connect to precise shunt resist or install I4 module on MIO): 0～20mA, 4～ 20mA, etc. Linear resistance : 0～80ohm, 0～400ohm. Optional: apart from the above-mentioned Input type, an additional type can be provided upon request.

Instrument Input range K(-100～1300℃), S(0～1700℃), R(0～1700℃), T(-200～+390℃), E(0～1000℃), J(0～1200℃), B(600～1800℃), N(0～1300℃), WRe3-WRe25(0～2300℃), WRe5-WRe26(0～2300℃) Cu50(-50～+150℃), Pt100(-200～+800℃) Linear Input: -9990～30000 defined by userMeasurement accuracy : 0.2%FS ± 0.1℃ z Resolution : 0.1℃ (automatically change to 1℃ when the temperature is high than 999.9℃) or 1℃ selectable z Temperature drift : ≤0.01%FS /℃ (typical value is 50ppm/℃) z Response time : ≤0.3s ( when digital filter parameter dL=0) z Control mode: On-off control mode (deadband adjustable) AI MPT with auto tuning, adopting fuzzy logic PID algorithm. z Output mode (modularized) Relay output (NO+NC): 250VAC/2A or 30VDC/1A TRIAC no contact discrete output (NO or NC): 100 ～240VAC/0.2A (continuous), 2A (20mS instantaneous, repeat period≥5s) SSR Voltage output: 12VDC/30mA (used to drive SSR). Thyristor zero crossing trigger output: can trigger TRIAC of 5～500A, a pair of inverse paralleled SCRs or SCR power module. Linear current output: 0～20mA, 4～20mA (The output voltage of X module ≥10.5V; and that of X3 module ≥10.5V.) z Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5. z Isolation withstanding voltage : between power, relay contact or signal terminal ≥2300VDC; between isolated electroweak terminals ≥600VDC z Power supply : 100～240VAC, -15%, +10% / 50-60Hz; 120～240VDC; or 24VDC/AC, -15%, +10%
