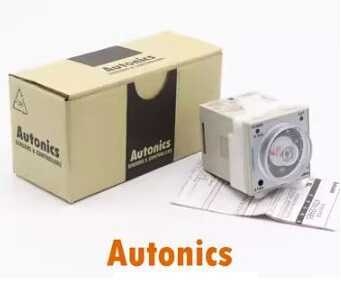

Bộ định thời Autonics AT11EN
Giá gốc: 400.000₫
Giá khuyến mại 320.000₫
SPECIFICATION
|
Manufacturer |
AUTONICS | |
|
Type of module |
timer | |
|
Counting range |
0,05s...100h | |
|
Kind of output |
SPDT + SPDT | |
|
Output 1 electrical parameters |
30V DC / 5A, 250V AC / 5A | |
|
Number of operation modes |
6 | |
|
Counter operation modes |
delayed switching off, delayed switching on, ON and OFF delay, with the control contact S | |
|
Electrical connection |
round socket | |
|
Mounting |
on panel, socket | |
|
Operating temperature |
-10...55°C | |
|
Body dimensions |
48x48x79.5mm | |
|
Number of pins |
11 | |
|
IP rating |
IP20 | |
|
Mounting hole diameter |
45x45mm | |
|
The additional control inputs |
INHIBIT, RESET, START | |
|
Related items |
A-11/DIN |
Supply voltage
- 24...240V DC
- 100...240V AC
Gross weight122.5 g
